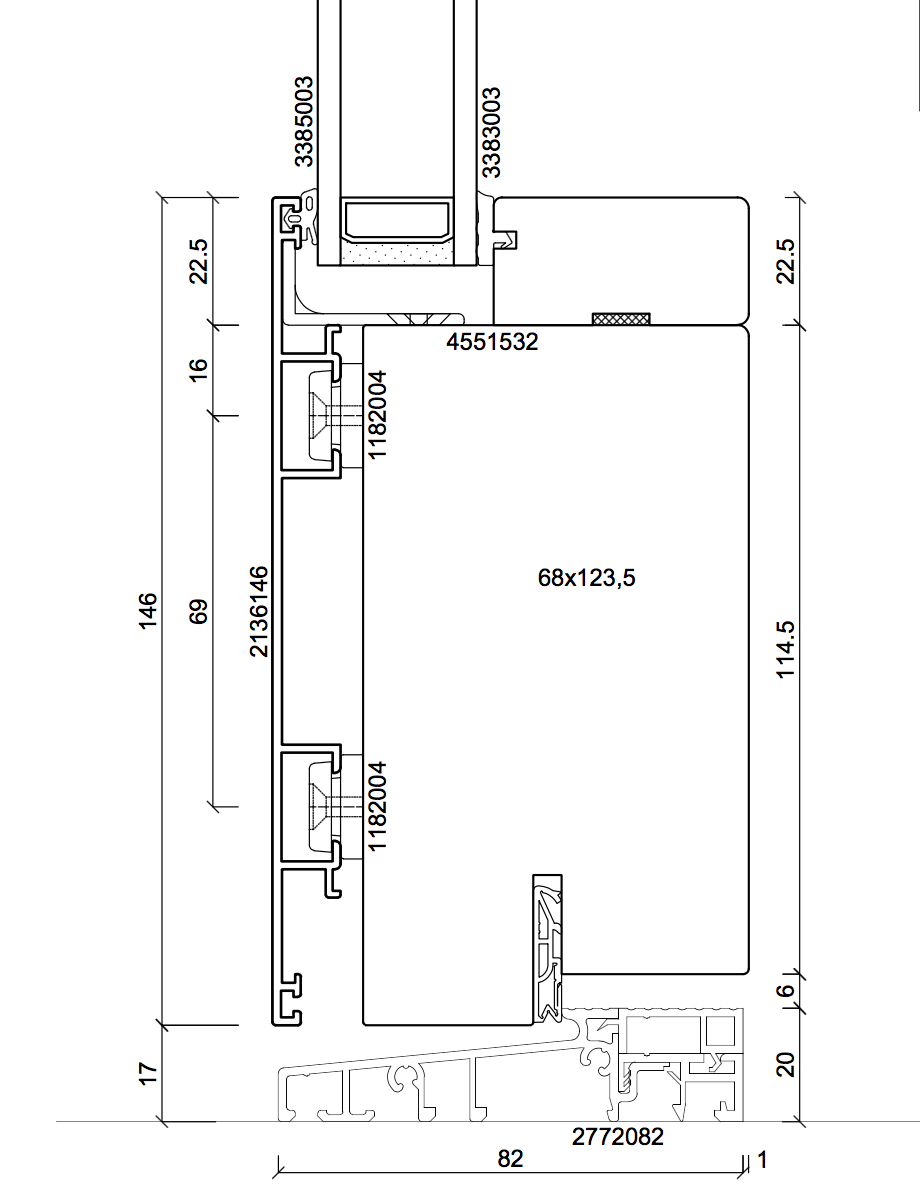

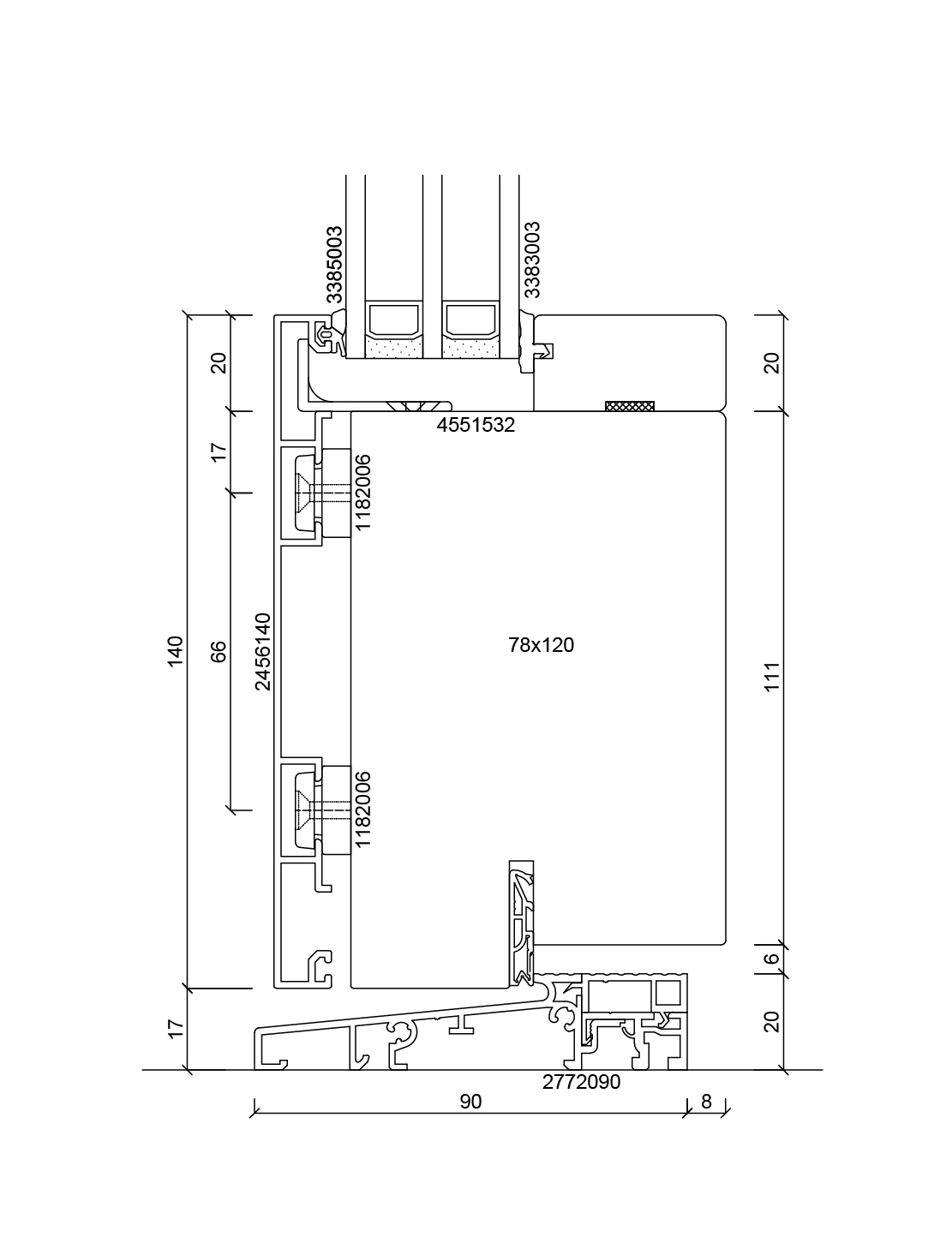

batimet TA35 DSE TNA Schnitt

Wood-Aluminium Door
batimet TA35 DSE TNA

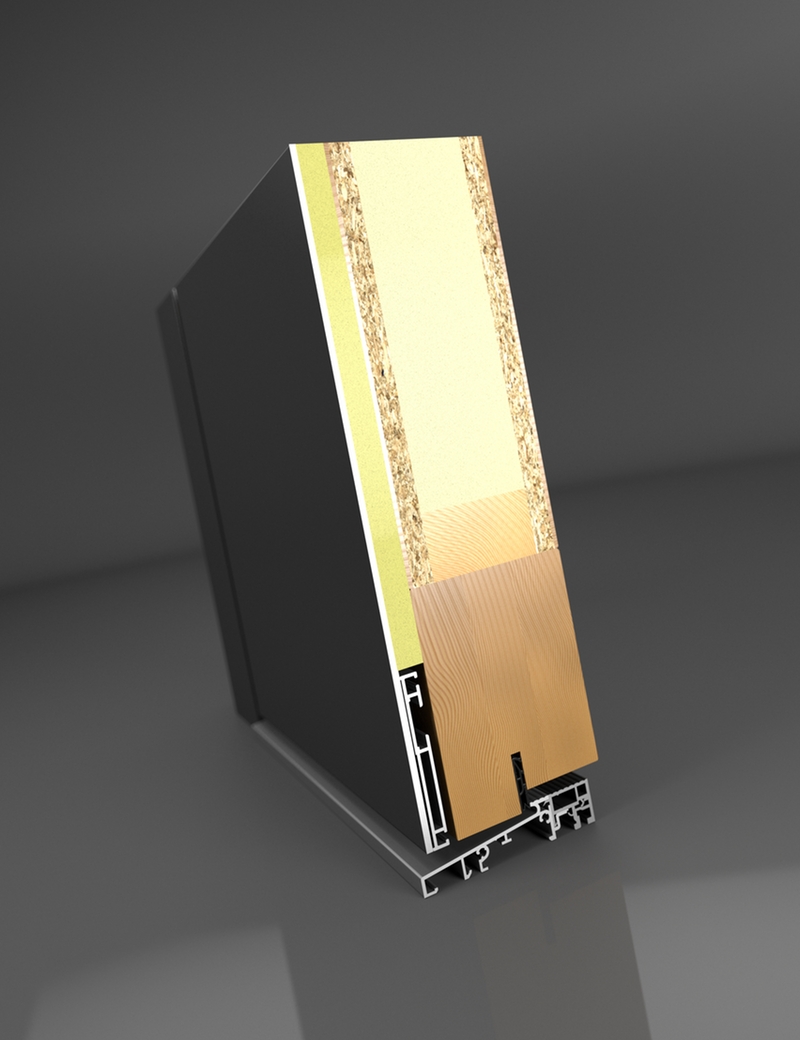

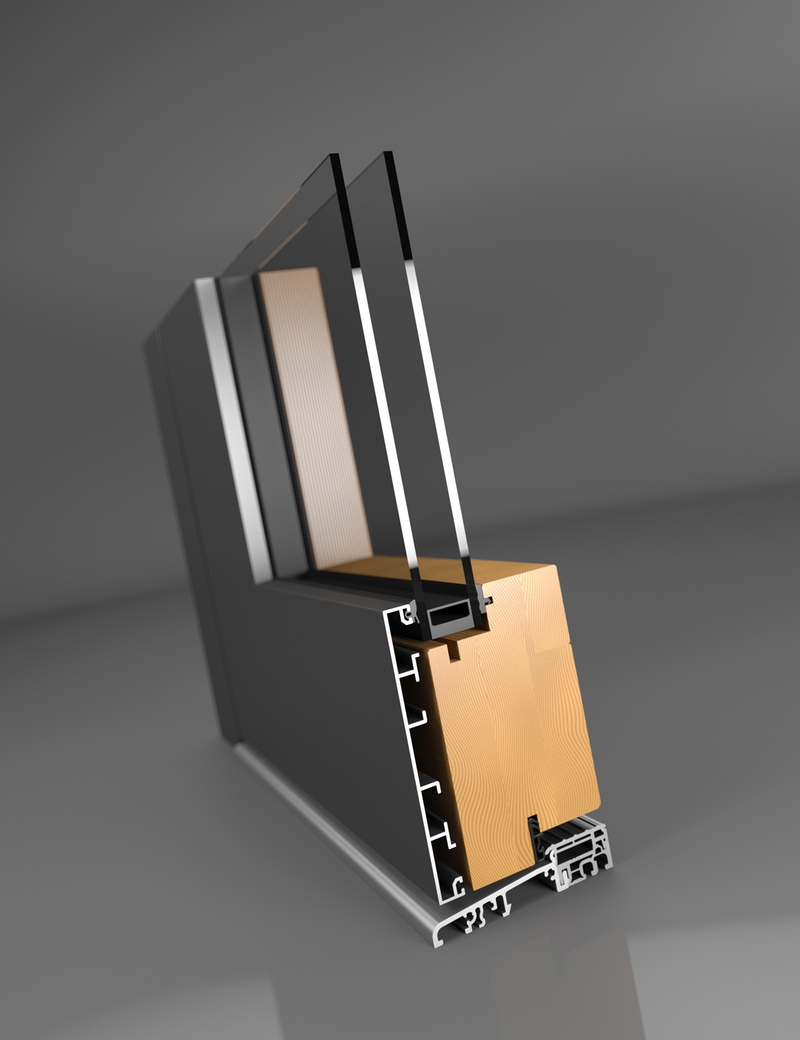

Frame profile and sash profile form a flush surface plane. Between glass and sash profile there is an offset of 18 mm depth. If a sash overlapping panel forms the door’s sash, frame profile and aluminium panel equally are a flush surface plane. Drainage of the rebate area is by means of concealed punch holes in the bottom profile crosspiece of the frame. Optionally, there can be visible drainage with a cover cap.

  • Height of Sash to 3,000 mm
  • Width of Sash to 1,600 mm
  • Weight of Sash as Dreh bis 300 kg

The corner joints of the aluminium frame are welded without any visible joint line. Coating is carried out in conformity with the valid quality guidelines of the coating of building parts in aluminium of GSB-International GSB AL 631, or QUALICOAT regulations.




Top Uw-Values

Uw-Values ≥ 0.83 W/m²K

Types of Wood

Spruce, Pine, Fir, Larch, Oak, Hemlock, Douglas Fir

Surface

RAL, NCS, DB, anodised, metallic, highly weather resistant, sea water proof

Corner Joint

Welded, no visible joint lines, durable anti corrosion coarting

DIN EN 12207 Air Permeability: Class 4
DIN EN 12208 Driving Rain Resistance: Class 9A
DIN EN 12210 Windload Resistance: Class C4
DIN EN ISO 10077-2 Uw ≥ 0.83 W/m²K
DIN EN ISO 140-3 Noise Insulation: RW C; Ctr = 42 dB
DIN EN 1627 Burglar Resistance: RC1N, RC2N, RC2
