batimet TA35 DSP

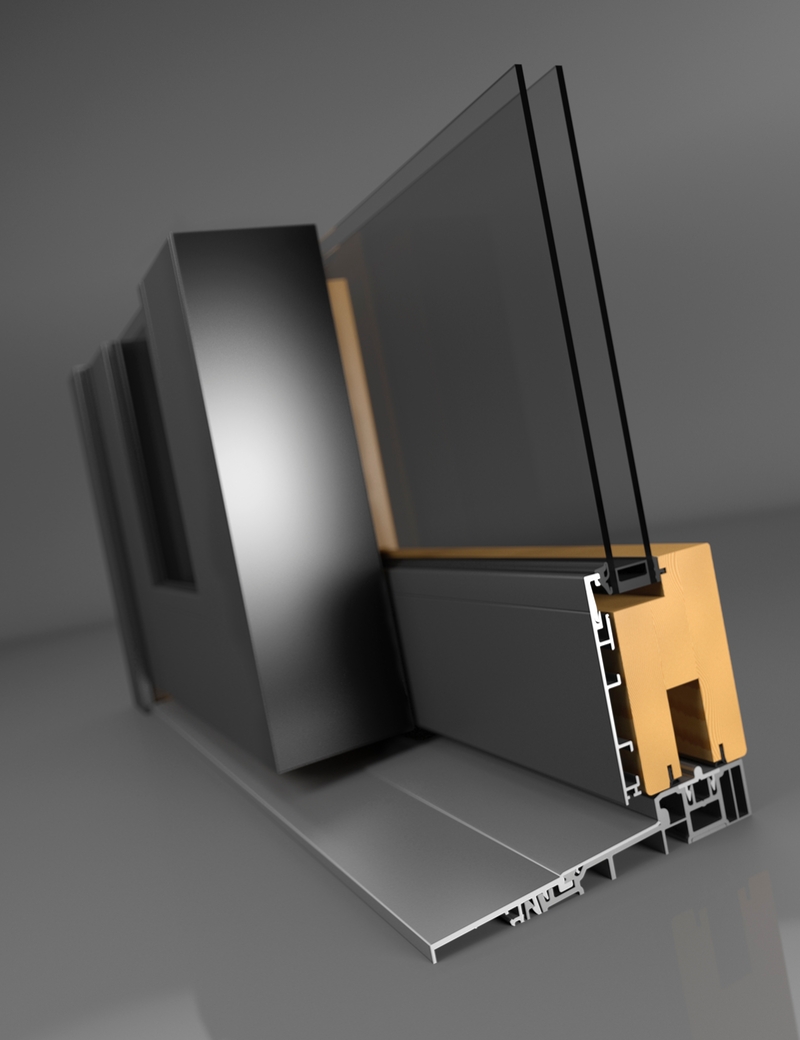

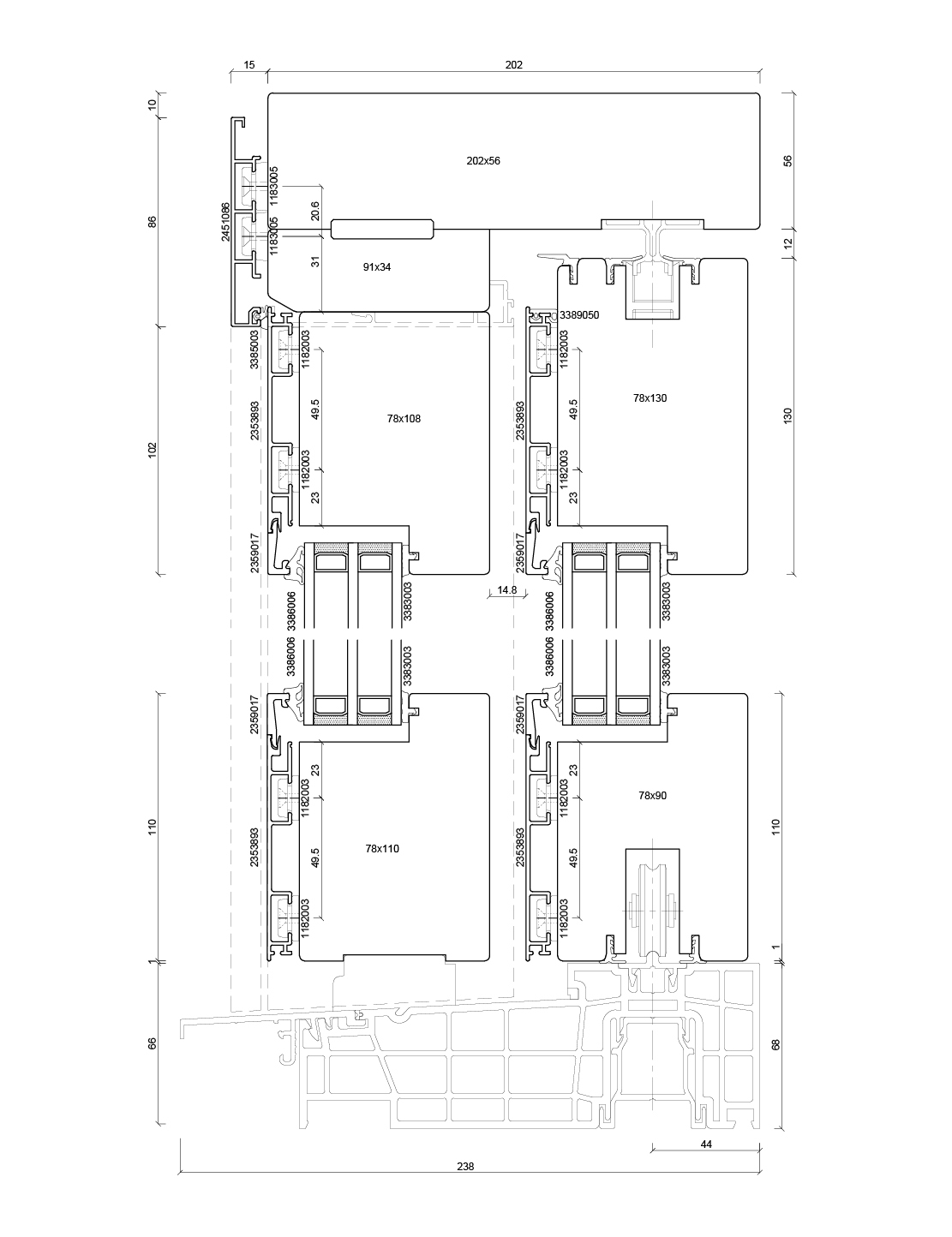

Frame profile and sash profile form a flush surface plane. Between glass and sash profile there is an offset of 15 mm depth. The elevation of the visible sash profile is 100 mm und it runs straight and perpendicular to the glass level. The sash profile can be wider in the case of certain static requirements. Drainage of the rebate area is by means of concealed punch holes in the bottom profile crosspiece of the frame. Optionally, there can be visible drainage with a cover cap.
- Height of Sash to 3,000 mm
- Width of Sash to 3,000 mm
- Weight of Sash as Lift-Slide to 200 kg
- Weight of Sash as Sliding to 300 kg
The corner joints of the aluminium frame are welded without any visible joint line. Coating is carried out in conformity with the valid quality guidelines of the coating of building parts in aluminium of GSB-International GSB AL 631, or QUALICOAT regulations.
Uw-Values ≥ 0.70 W/m²K
Types of Wood
Spruce, Pine, Fir, Larch, Oak, Hemlock, Douglas Fir
RAL, NCS, DB, anodised, metallic, highly weather resistant, sea water proof
Welded, no visible joint lines, durable anti corrosion coarting
