batimet TA35 VB

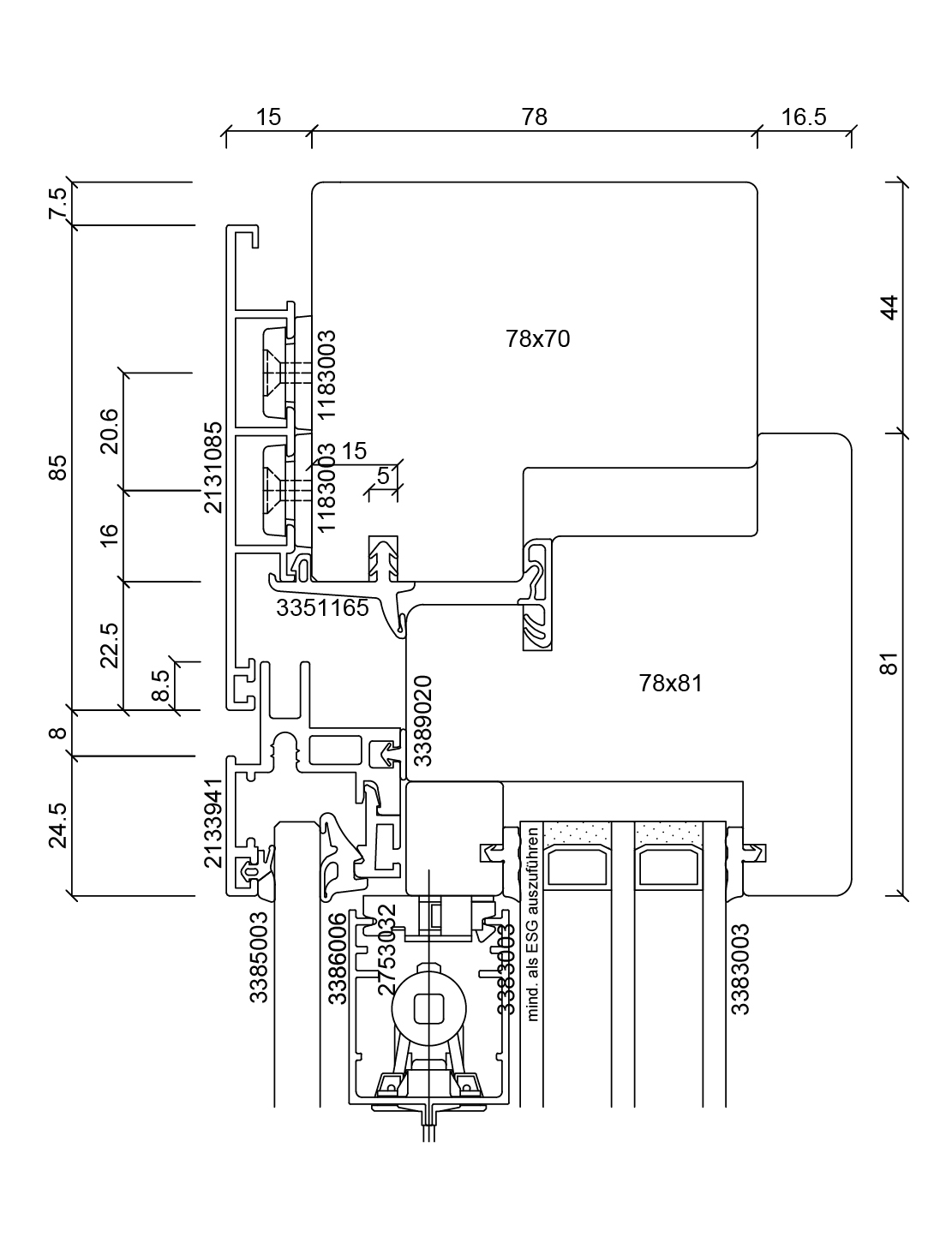

The main feature is a separate, glazed, exterior sash frame which is openable via a composite hardware system. Frame profile and sash profile form a flush surface plane. Between glass and sash profile there is a rebate of 10 mm depth. The elevation of the visible sash profile is 33 mm. The sash profile can be wider in the case of certain static requirements. Drainage of the rebate area is by means of concealed punch holes in the bottom profile crosspiece of the frame. Optionally, there can be visible drainage with a cover cap.
- Height of Sash to 3,000 mm
- Width of Sash to 1,600 mm
- Weight of Sash as Tilt/Turn to 200 kg
- Weight of Sash as Turn Only to 300 kg
The corner joints of the aluminium frame are welded without any visible joint line. Coating is carried out in conformity with the valid quality guidelines of the coating of building parts in aluminium of GSB-International GSB AL 631, or QUALICOAT regulations.
Uw-Values ≥ 0.74 W/m²K
Types of Wood
Spruce, Pine, Fir, Larch, Oak, Hemlock, Douglas Fir
RAL, NCS, DB, anodised, metallic, highly weather resistant, sea water proof
Welded, no visible joint lines, durable anti corrosion coarting
