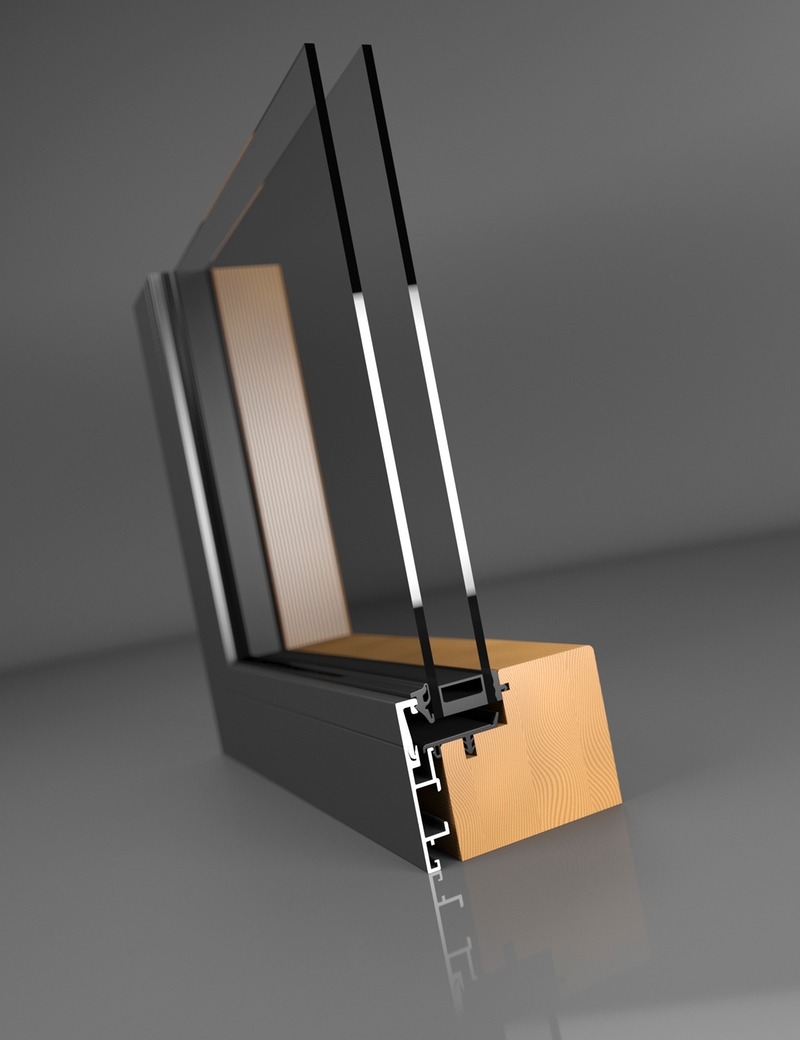

Wood-Aluminium Window batimet TA35 FO

batimet TA35 FO
batimet TA35 FO

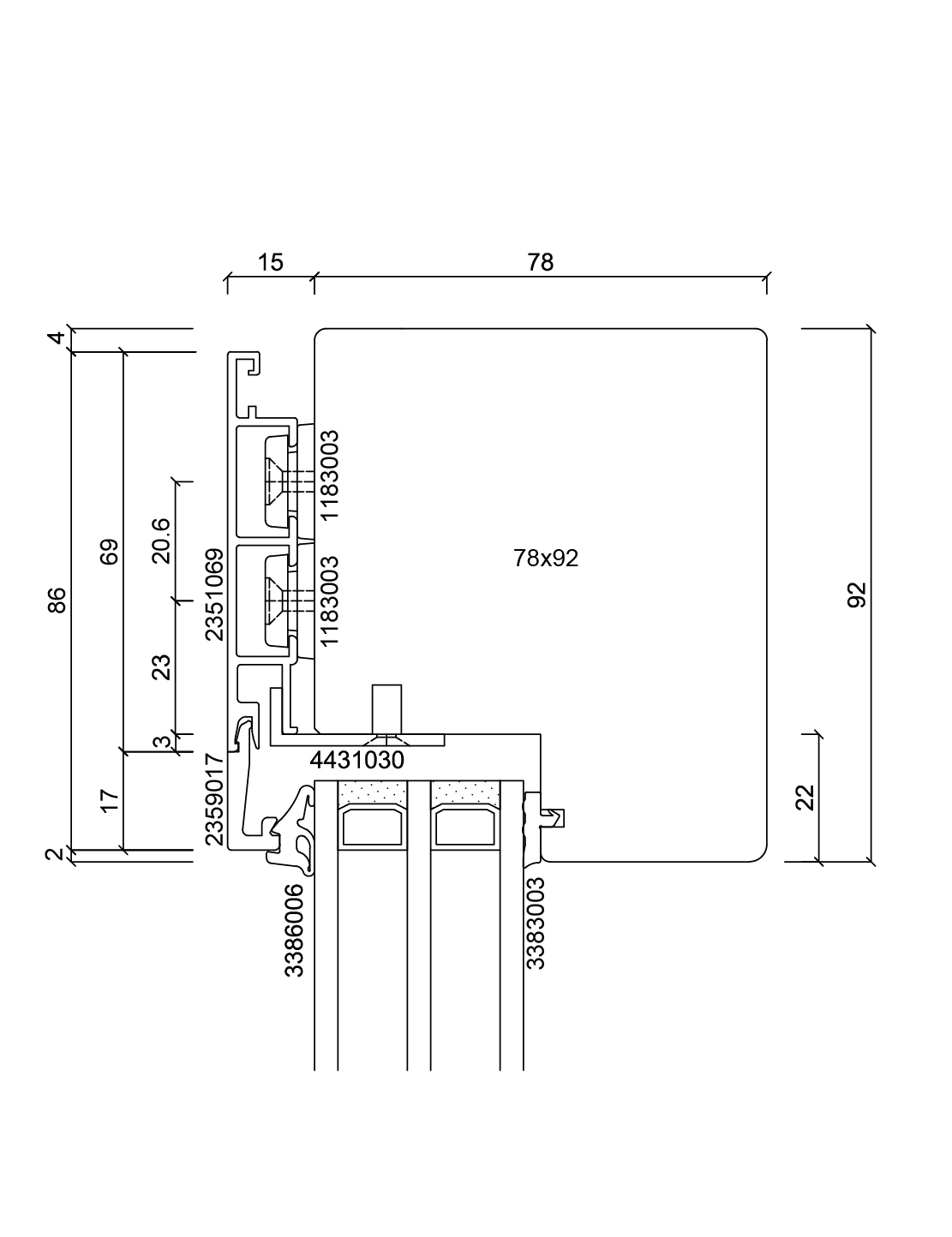

batimet TA35 FO Schnitt

Wood-Aluminium Window
batimet TA35 FO

Frame profile and sash profile form a flush surface plane. Between glass and sash profile there is a rebate of 15 mm depth. The elevation of the visible sash profile is 66 mm and runs straight to the glass level. The sash profile can be wider in the case of certain static requirements. Drainage of the rebate area is by means of concealed punch holes in the bottom profile crosspiece of the frame. Optionally, there can be visible drainage with a cover cap. The norms of the sash are taken of the combinable systems of the FB series.

  • Height of Sash to 3,000 mm
  • Width of Sash to 1,600 mm
  • Weight of Sash as Tilt/Turn to 200 kg
  • Weight of Sash as Turn Only to 300 kg

The corner joints of the aluminium frame are welded without any visible joint line. Coating is carried out in conformity with the valid quality guidelines of the coating of building parts in aluminium of GSB-International GSB AL 631, or QUALICOAT regulations.




Top Uw-Values

Uw-Values ≥ 0.69 W/m²K

Types of Wood

Spruce, Pine, Fir, Larch, Oak, Hemlock, Douglas Fir

Surface

RAL, NCS, DB, anodised, metallic, highly weather resistant, sea water proof

Corner Joint

Welded, no visible joint lines, durable anti corrosion coarting

DIN EN 12207 Air Permeability: Class 4
DIN EN 12208 Driving Rain Resistance: Class E900
DIN EN 12210 Windload Resistance: Class C4
DIN EN ISO 10077-2 Uw ≥ 0.69 W/m²K
DIN EN ISO 717-1 Noise Insulation: Rwp = 45 dB
DIN EN 1627 Burglar Resistance: RC1N, RC2N, RC2
DIN 18008-4 TRAV Safety Barrier: Category A, B, C
